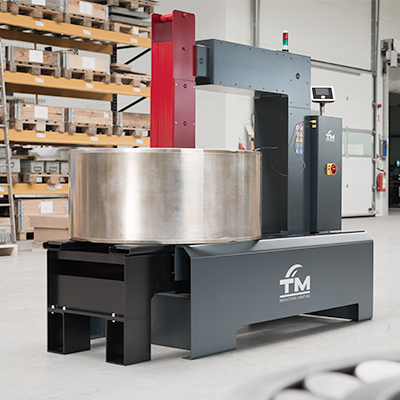

智能无应力加热SURETHERM PRO 6X

分享
微信
新浪微博
QQ
豆瓣网
百度贴吧
复制链接
脸书
X
领英
马上咨询
产品详情

The following yokes are included with SURETHERM PRO 6X: 150 x 150. Additional yoke sizes are listed in our Datasheet. Two magnetic temperature sensors with a length of 1500 mm are included as well.

SURETHERM PRO 6X标备轭铁150X150, 包含两个长度为 1500 mm的磁性温度传感器。


SPECIFICATIONS参数

Voltage电压400 - 480 - 575 Vac
Frequency频率50 / 60 Hz
Max. current最大电流100 A
Weight重量650 kg / 1433 lbs
Operating Area (WxH)工件范围685 x 705 mm
26.97 x 27.76"
Footprint (LxB)覆盖范围1500 x 800 mm
59.06 x 31.50"
Workpiece工件
Min. bore diameter最小内径ø 85 mm / ø 3.35"
Max. outer diameter最大外径ø 2000 mm / ø 78.74"
Max. width最大宽度695 mm / 27.36"
Max. weight最大重量1600 kg / 3527 lbs
