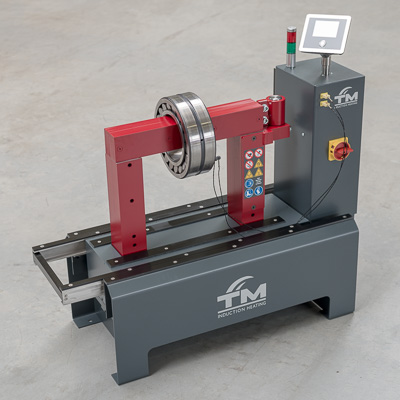

智能无应力加热SURETHERM PRO 1X-P

微信

新浪微博

豆瓣网

百度贴吧

复制链接

脸书

领英

马上咨询

产品详情

The following yokes are included with SURETHERM PRO 1XP: 80 x 80. Additional yoke sizes are listed in our Datasheet. Two magnetic temperature sensors with a length of 1000 mm are included as well.

The SURETHERM PRO 1X-P can also be supplied on a trolley (optional), so the device can be used on different locations in the workplace.

SURETHERM PRO 1X-P 包含两个长度为 1000 mm 的磁性温度传感器，标配轭铁80X80。可放在手推车（可选配件）上移动,在车间的不同位置使用。

SPECIFICATIONS参数

Voltage电压	400 - 480 - 575 Vac
Frequency频率	50 / 60 Hz
Max. current最大电流	32 A
Weight重量	157 kg / 346 lbs
Operating Area (WxH)工作范围	330 x 300 mm 12.99 x 11.81"
Footprint (LxB)覆盖范围	850 x 410 mm 33.46 x 16.14"
Workpiece工件
Min. bore diameter最小内径	ø 30 mm / ø 1.18"
Max. outer diameter最大外径	ø 1000 mm / ø 39.37"
Max. width最大宽度	320 mm / 12.60"
Max. weight最大重量	400 kg / 880 lbs
