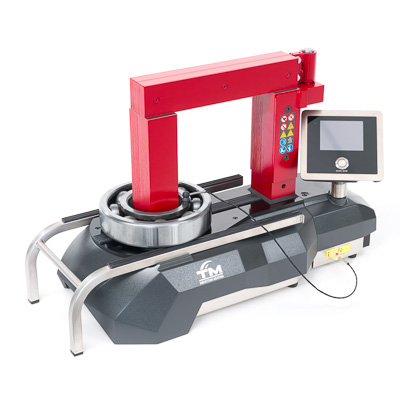

The SURETHERM 20X is a stationary induction heater with ergonomic pivoting yokes, making it a versatile addition to the SURETHERM-series. The pivoting yoke makes for easy workpiece handling as there is no need to lift the part and remove the yoke. To be used for professional mounting of a wide range of parts, including bearings (max. weight: 100 kg, max. diameter: 500 mm). When extension yokes are used, the maximum diameter is 680 mm.
The following yokes are included with SURETHERM 20X:50 x 48. Additional yoke sizes are listed in our Datasheet. Two magnetic temperature sensors with a length of 500 mm are included as well.
SURETHERM 20X是一款固定式感应加热器，带有符合人体工程学的旋转臂，使工件易于搬运。用于各种零件加热，包括轴承（最大重量100公斤，最大直径500毫米）。 使用延长臂时，最大直径为680毫米。
包含两个长度为 500 mm 的磁性温度传感器。
SPECIFICATIONS参数
| Voltage电压 | 110 - 230 Vac |
| Frequency频率 | 50 / 60 Hz |
| Max. current最大电流 | 16 A |
| Weight重量 | 40 kg / 88 lbs |
| Operating Area (WxH)工作范围 | 180 x 183 mm 7.09 x 7.20″ |
| Footprint (LxB)覆盖范围 | 540 x 275 mm 21.3 x 10.8" |
| Workpiece工件 | |
| Min. bore diameter最小内径 | ø 15 mm / ø 0.59" |
| Max. outer diameter最大外径 | ø 500 mm / ø 19.69 |
| Max. width最大宽度 | 180 mm / 7.09" |
| Max. weight最大重量 | 100 kg / 220 lbs |
